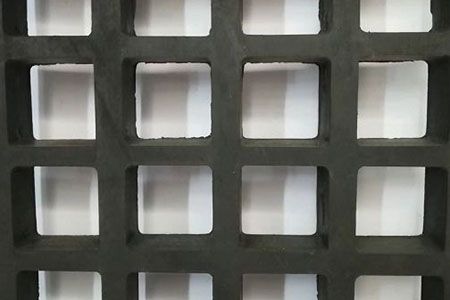

DUNPAI’s rubber screens are resistant to abrasion and can process hard materials, such as ores, granite, crushed stones, gravel and coal. Because of this, our rubber screens can be used with heavy-duty screening machines in industries like mining, metallurgy, coking, building materials and coal preparation.
Aperture Width | Opening Area | Particles (mm) | Thickness According to Loading Capacity | ||||
Unbroken | broken | Light | Normal | Heavy | Very Heavy | ||
13.00 | 30.1% | 12 | 11 | 8 | 10 | 12 | 15 |
17.00 | 36.3% | 14 | 13 | 10 | 15 | ||
18.00 | 30.2% | 15 | 14 | 10 | 15 | ||
22.00 | 29.3% | 18 | 17 | 12 | 15 | ||
30.00 | 32.0% | 25 | 22 | 15 | 20 | 25 | |
35.00 | 34.2% | 30 | 27 | 15 | 20 | 25 | |
40.00 | 37.3% | 34 | 31 | 20 | 25 | 30 | |
42.00 | 37.2% | 36 | 34 | 25 | 30 | 35 | |
50.00 | 37.9% | 41 | 38 | 25 | 30 | 35 | |
60.00 | 39.1% | 50 | 46 | 25 | 30 | 35 | |
63.00 | 39.3% | 52 | 48 | 25 | 30 | 35 | |
65.00 | 40.1% | 55 | 50 | 25 | 30 | 35 | |
70.00 | 38.5% | 59 | 54 | 25 | 30 | 35 | |
75.00 | 38.6% | 63 | 58 | 25 | 30 | 35 | |
80.00 | 41.5% | 68 | 63 | 25 | 30 | 35 | 40 |
90.00 | 42.0% | 75 | 68 | 25 | 30 | 35 | 40 |
Aperture Width | Opening Area | Particles (mm) | Thickness According to Loading Capacity | ||||
Unbroken | broken | Unbroken | broken | ||||
2,00 x 20,00 | 30.0% | 2 | 2 | 4 | |||
2,00 x 24,00 | 30.0% | 2 | 2 | 4 | |||
2,00 x 28,00 | 32.0% | 2 | 2 | 4 | |||
3,75 x 28,00 | 35.0% | 3.5 | 3.5 | 4 | |||
4,00 x 28,00 | 36.0% | 4 | 4 | 4 | 5 | ||
5,00 x 28,00 | 40.0% | 5 | 5 | 4 | 5 | ||
6,00 x 28,00 | 41.0% | 6 | 6 | 4 | 5 | ||
6,90 x 28,00 | 43.0% | 6.5 | 6.5 | 4 | 5 | ||
25,00 x 80,00 | 44.5% | 22 | 22 | 20 | 25 | 30 | |
25,00 x 120,00 | 46.0% | 22 | 22 | 20 | 25 | 30 | |
28,00 x 80,00 | 45.0% | 25 | 25 | 20 | 25 | 30 | |
30,00 x 100,00 | 48.0% | 28 | 28 | 20 | 25 | 30 | |
30,00 x 120,00 | 49.0% | 28 | 28 | 20 | 25 | 30 | |
35,00 x 70,00 | 48.50% | 30 | 30 |
Our factory for the production of rubber wire screens covers 10,000 square meters and has different types of vulcanizing machines.
