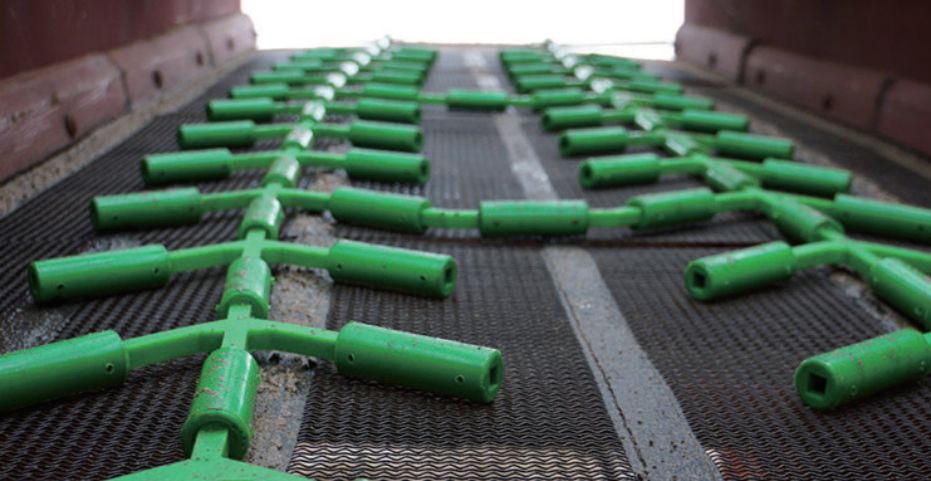

DUNPAI’s declogging rods are made of polyurethane, which enables the parts to be resistant to abrasion and to be used for quite a long time. The declogging rods are fixed to the surfaces of screens and will vibrate and bounce on the surfaces when the screening machine is working, which will prevent particles from wedging and blinding the screen.
Features
Straight Blade
Wiper Blade
Wiper blades and straight blades are available. Both types are made of polyurethane to realize abrasion resistance. Change-out slots are enabled to allow for easy installation and change of blades.
Blade Specifications
Fishtail Nozzle
Cylindrical Nozzle
DUNPAI’s screening spray nozzles are made of polyurethane, meaning that the spray nozzles are abrasion-resistant and alkali-resistant. In addition, the screening spray nozzles have no requirements for water quality and are applicable for used water.
DUNPAI’s tensioning bolts are made of quaity raw materials and with latest techniques.
Available Models
DUNPAI’s tension hooks are able to keep wire screens as tense as ever.
DUNPAI’s rubber channels are highly customizable. The channels’ cross sections, specific features and specifications can be tailored based on your demands. To enjoy the service, you should at least order 50 meters of the channels.
Rubber Spring
Rubber Buffer
DUNPAI’s rubber buffers and rubber springs have less elastic modulus than metal springs, but are still elastic enough for non-linear motion. To be applicable in different production tasks, the stiffness of our rubber buffers and springs are adjustable. The buffers and springs also feature large damping ratio, meaning that they can withstand sudden impact and have smaller noise than metal springs. Apart from that, the installation, detachment and maintenance are quite easy, during which there is no need for lubrication.
| Model | Initial Outer Diameter (mm) | Inner Diameter (mm) | Height (mm) | Recommended Height (mm) | Maximum Outer Diameter (mm) | Locating Pin | Load Capacity Kg/cm |
| 120 | 30 | 120 | 96-102 | 140 | 24 | 244-400 | |
| 140 | 30 | 140 | 112-119 | 165 | 24 | 400-600 | |
| 160 | 40 | 160 | 128-136 | 188 | 32 | 600-850 | |
| 180 | 40 | 180 | 144-153 | 208 | 32 | 850-1200 | |
| 200 | 50 | 200 | 160-170 | 230 | 40 | 1200-1500 | |
| 220 | 20 | 220 | 176-187 | 252 | 40 | 1500-2000 | |
| 240 | 50 | 240 | 192-204 | 275 | 40 | 2000-2600 |
Cylindrical Rubber Screen
Being Pressed
Installation Guide
